A Case Report of Carbon Ion Radiotherapy for Lacrimal Sac Tumor

A Case Report of Carbon Ion Radiotherapy for Lacrimal Sac Tumor

Introduction:

Lacrimal sac tumor is a rare but highly aggressive type of tumor, commonly found in the lacrimal sac and lacrimal gland regions. The majority are primary tumors, and their etiology remains incompletely understood. A small number of cases are closely associated with chronic inflammation of the lacrimal gland, with lacrimal gland epithelial carcinoma being the most common, accounting for approximately 10% of orbital tumors. These tumors pose a significant threat to patients' health and lives. Currently, a multidisciplinary approach involving eye-preserving surgery combined with postoperative radiotherapy and chemotherapy is typically employed to maximize the preservation of ocular function while controlling the tumor. Radiotherapy plays a crucial role in the local treatment of both postoperative and non-surgical patients. Common postoperative radiotherapy techniques include photon external beam radiotherapy, brachytherapy, and proton external beam radiotherapy. Although photon radiotherapy effectively controls tumors, it causes significant damage to surrounding normal tissues, potentially leading to severe complications such as vision loss. Carbon ions have a smaller penumbra and a narrower Bragg peak compared to protons, making them more suitable for small and superficially located lacrimal sac and gland tumors. The relative biological effectiveness (RBE) of carbon ion radiotherapy is higher, meaning that at the same dose, carbon ions have a stronger tumor-killing effect. Currently, there are limited clinical studies on carbon ion radiotherapy for lacrimal sac malignancies, but existing research suggests that carbon ion radiotherapy has potential advantages in local control rates and survival rates. Therefore, this study analyzes the efficacy of carbon ion radiotherapy in a case of lacrimal sac malignancy, providing a reference for the potential dosimetric and biological advantages of this treatment approach.

Clinical Data:

General Information: A 44-year-old female patient presented with a round mass about the size of a mung bean at the root of the right nostril, accompanied by tearing. There was no redness, swelling, pain, significant secretion, visual impairment, headache, nausea, vomiting, orbital pain, diplopia, or visual distortion. The diagnosis was confirmed by orbital MRI, endoscopic biopsy of the right lacrimal sac tumor, and PET-CT.

Treatment Plan Implementation:The carbon ion radiotherapy plan involved the patient lying in a supine position, fixed with a vacuum bag and thermoplastic film. CT and MRI images were fused to delineate the target volume. The gross tumor volume (GTV) included the visible right lacrimal sac lesion on enhanced T1-weighted images. The clinical target volume (CTV) encompassed the GTV, right medial rectus muscle, right ethmoid sinus, and right maxillary sinus. Planning target volume 1 (PTV1) was the GTV + 0.3 cm, and PTV2 was the CTV + 0.3 cm. The prescribed dose was 64 Gy (RBE) in 16 fractions for PTV1 and 56 Gy (RBE) in 14 fractions for PTV2. Organs at risk (OAR) dose constraints were as follows: right eye: mean dose ≤ 30 Gy (RBE), right lens: left eye: maximum dose ≤ 9 Gy (RBE), brainstem: maximum dose ≤ 54 Gy (RBE), right optic nerve: 50% isodose line ≤ 56 Gy (RBE), right temporomandibular joint: mean dose ≤ 35 Gy (RBE), optic chiasm: maximum dose ≤ 54 Gy (RBE), left eye: mean dose ≤ 35 Gy (RBE), left lens: maximum dose ≤ 0 Gy (RBE).

Efficacy and Adverse Event Evaluation: Efficacy was assessed using the Response Evaluation Criteria in Solid Tumors (RECIST) version 1.1, and acute radiation toxicity was evaluated using the RTOG acute radiation injury grading system. Adverse events were graded according to CTCAE version 5.0.

Results: The treatment was effective, with a partial response (PR) at the end of radiotherapy and 3 months post-treatment, and a complete response (CR) at 2 years post-treatment. The acute radiation skin injury grade was 1 according to RTOG criteria, and the adverse event grade was 1 according to CTCAE-V5.0. No ocular toxicity, such as vision loss or visual impairment, was observed 2 years after radiotherapy.

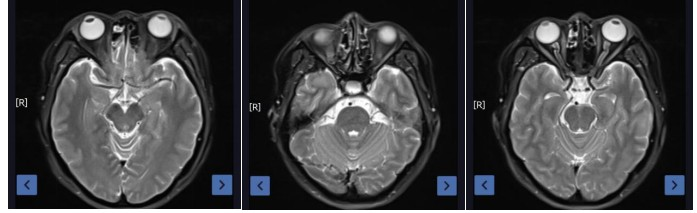

Figure 1: Pre-treatment (16mm × 22mm × 28mm)

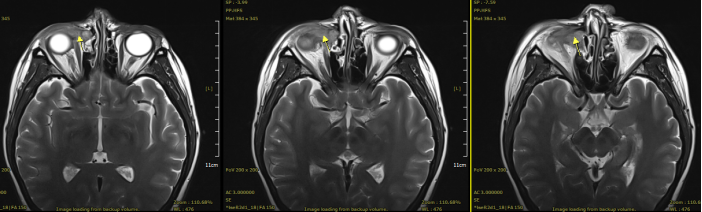

Figure 2: Post-treatment at 2 years (complete resolution of the lesion)

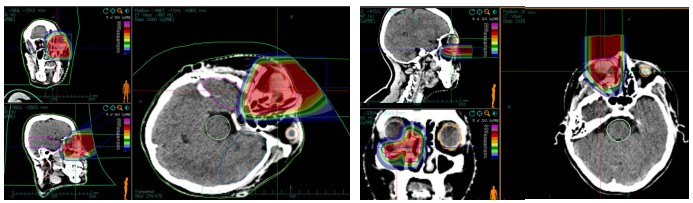

Figure 3: First course horizontal field: Prescription dose PTV 56 Gy (RBE)/14 fx; Second course vertical field: Prescription dose PTV = 8 Gy (RBE)/2 f.

Table 1: Efficacy Evaluation

Table 2: Acute Toxic Reactions

Conclusion

Carbon ion therapy, as a treatment for lacrimal sac tumors, is safe, effective, and demonstrates significant short-term efficacy.

Discussion

Carbon ion radiotherapy, as a novel radiotherapy technique, has demonstrated significant dosimetric advantages and potential clinical efficacy in the treatment of lacrimal sac malignancies. It can significantly improve local control rates and overall survival while reducing treatment-related adverse effects.In one study, patients with ocular tumors treated with carbon ion radiotherapy achieved 3-year overall survival, disease-free survival, and local control rates of 88.2%, 84.8%, and 94.7%, respectively. Additionally, the incidence of glaucoma post-treatment was low, indicating that carbon ion therapy has certain advantages in avoiding severe complications. A study by Skinneret al. Summarized follow-up data from 46 patients with epithelial malignancies of the lacrimal apparatus, finding that those treated with carbon ion therapy retained ocular function while significantly reducing the occurrence of acute and long-term radiotherapy-related adverse effects. Research by Mizoe and other researchers showed that carbon ion therapy in head and neck malignancies significantly improved local control rates without increasing acute adverse effects. Therefore, carbon ion therapy for lacrimal sac and gland tumors may offer both dosimetric and biological advantages. Future research will further explore the optimal application of carbon ion radiotherapy in the treatment of lacrimal sac malignancies, as well as its combination with other therapeutic modalities, aiming to enhance treatment efficacy and patients' quality of life.
